SKYZONEF405
Description
The SKYZONEF405 has been designed as a versatile flight controller, to allow efficient control of craft with 4, 6 or 8 motors.
It is available in 2 variants:

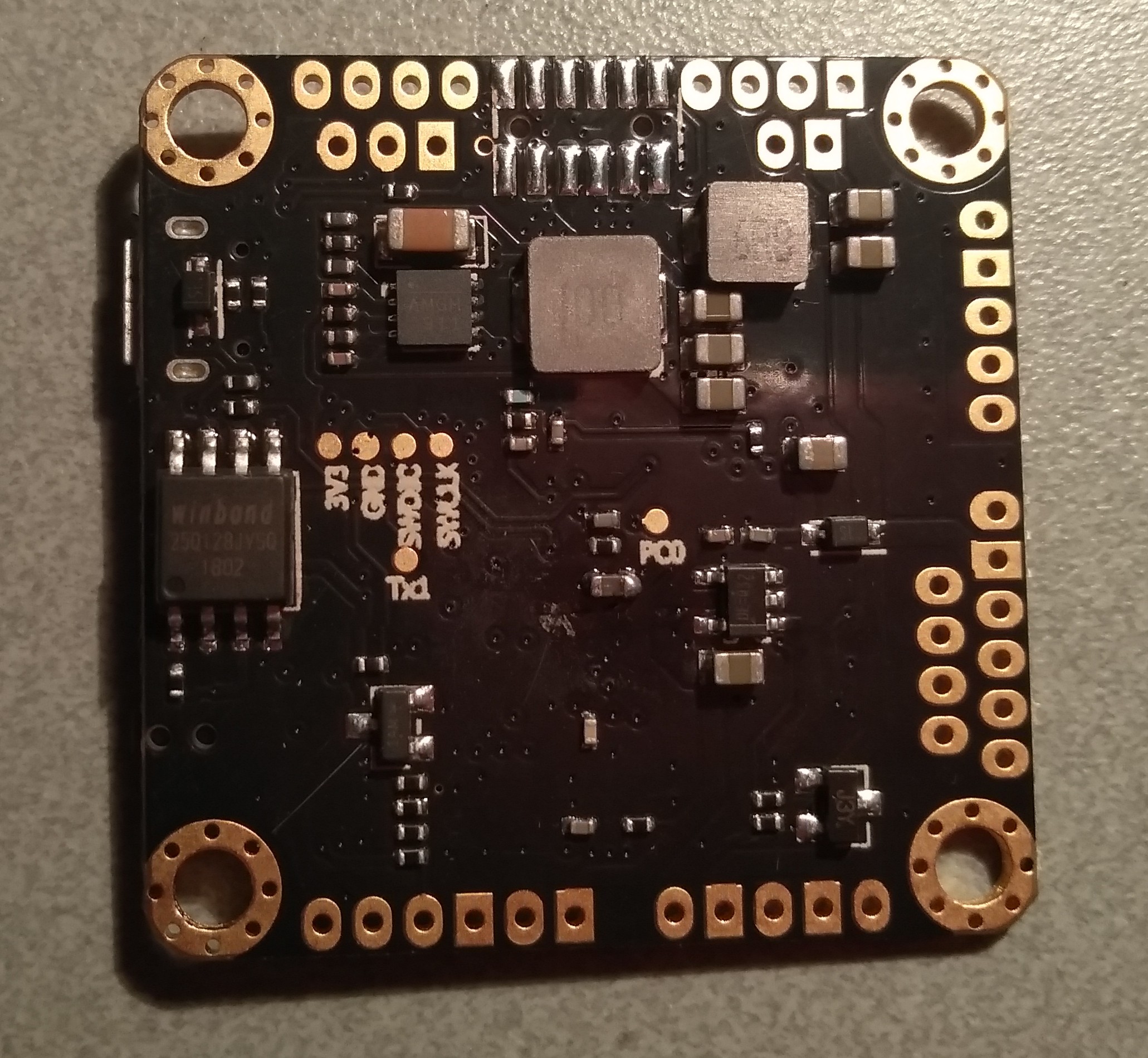

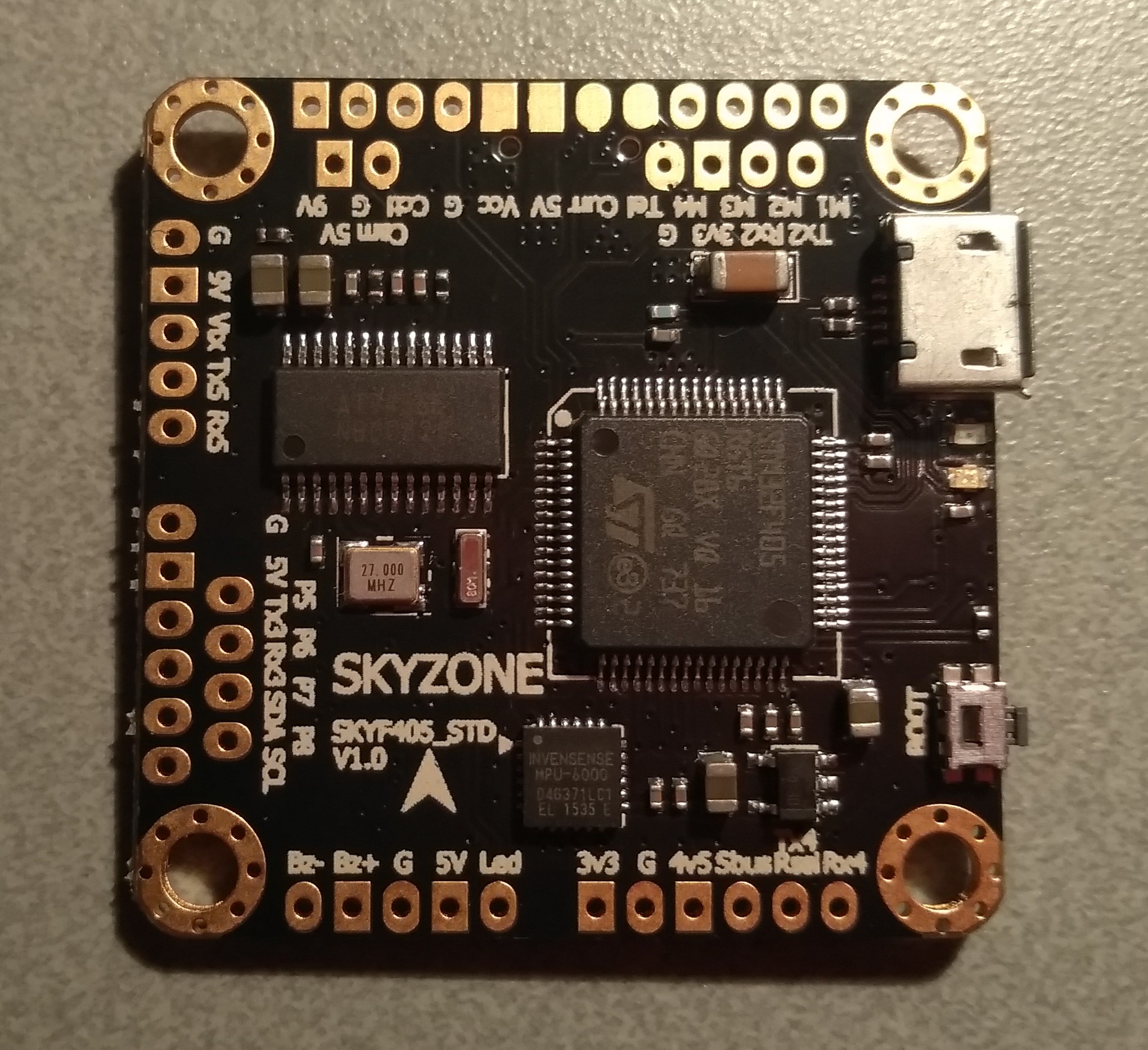

SKYZONEF405_STD
Standard 30 * 30 mm size

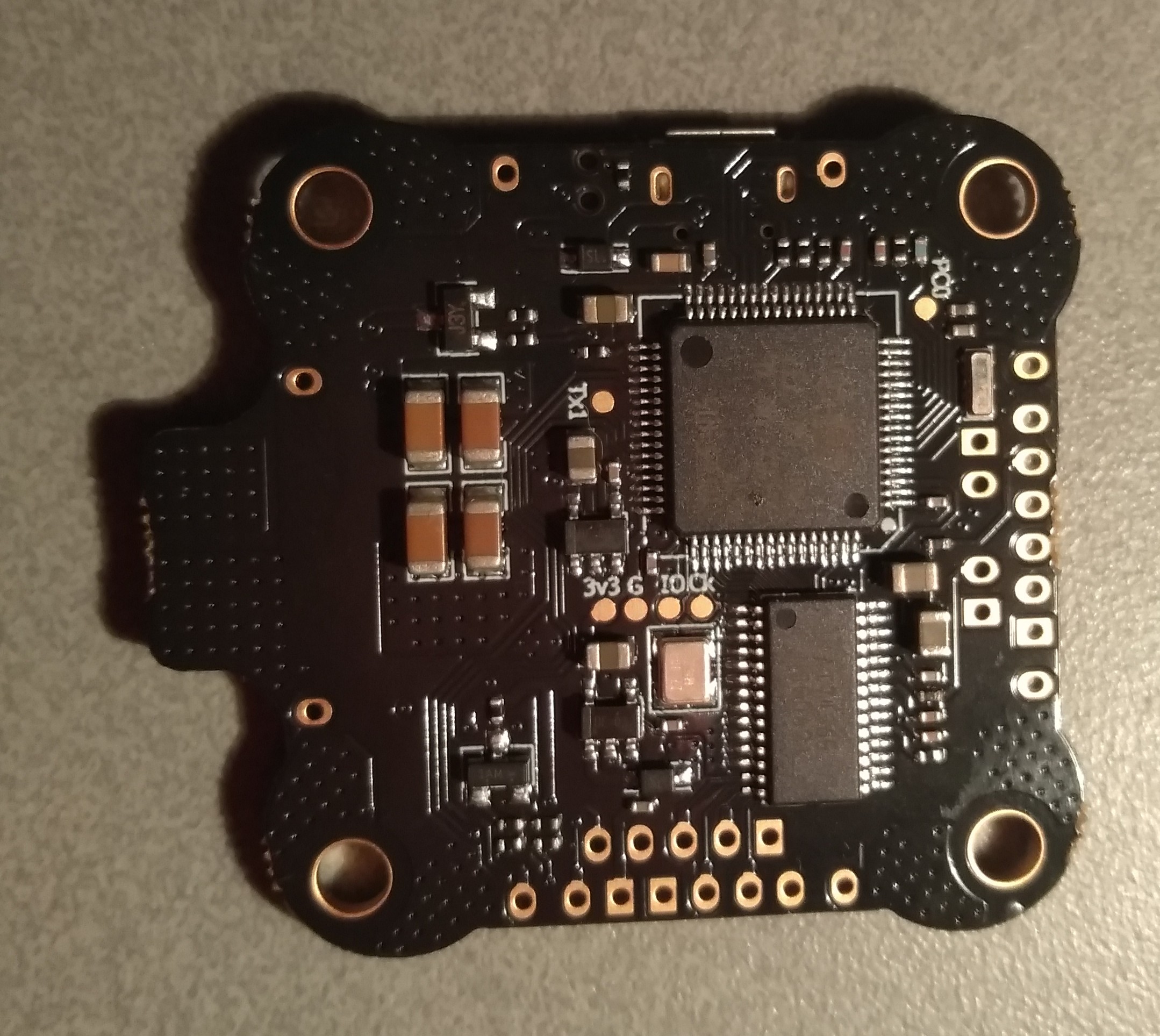

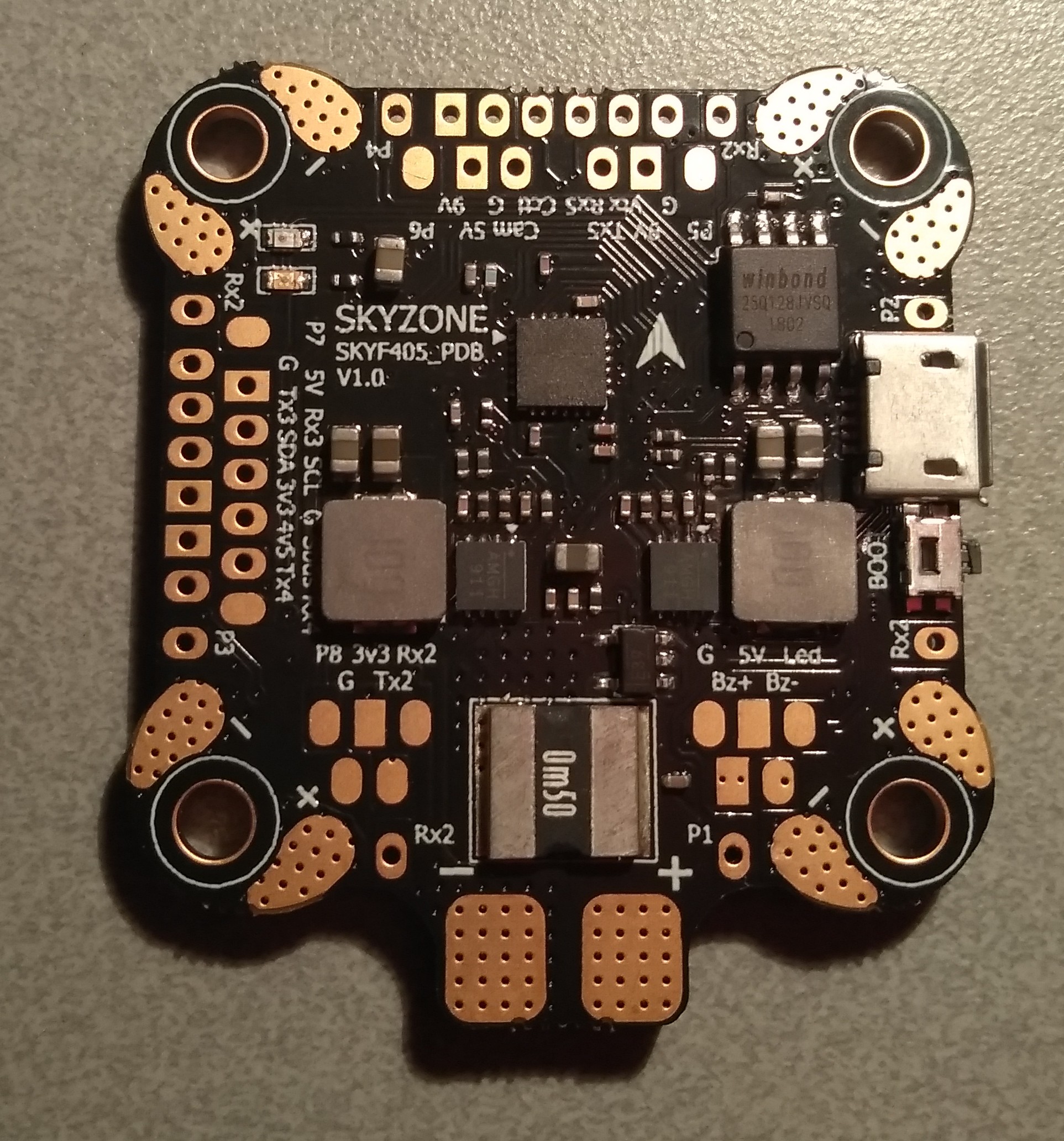

SKYZONEF405_PDB
30 x 30 mm 'extended corners' design with integrated PDB / current sensing shunt.
Hardware
| Type | Description |
|---|---|
| MCU | STM32F405 |
| IMU | available with MPU6000 or ICM-20689 |
| IMU Interrupt | yes |
| Motor outputs | up to 8 |
| Barometer | optional |
| Magnetometer | optional |
| VCP (supporting joystick emulation) | yes |
| Hardware serial | 5 (1 with inverter for SBus) |
| Software serial | 2 |
| OSD | yes |
| Blackbox | 16 MB onboard flash |
| PPM in | yes |
| Camera control output | yes |
| LED strip (WS2811) output | yes |
| Battery voltage sensor | yes |
| Current sensor | yes (SKYZONEF405_PDB only) |
| Integrated voltage regulator | yes |
| Buttons | boot |
| LEDs | power, activity |
Features
Plenty of connectivity options, including 5 UARTs, most of them with through-hole solder points, minimising the risk of ripped off solder pads.
ESC signal / telemetry solder points next to the corners for motors 1 - 4 (SKYZONEF405_PDB only).
Manufacturers and Distributors
skyzone Hobbies
Designers
skyzone Hobbies
